Avenger

Avenger

Regular price $12,500.00
Regular price Sale price $12,500.00
Sale Sold out

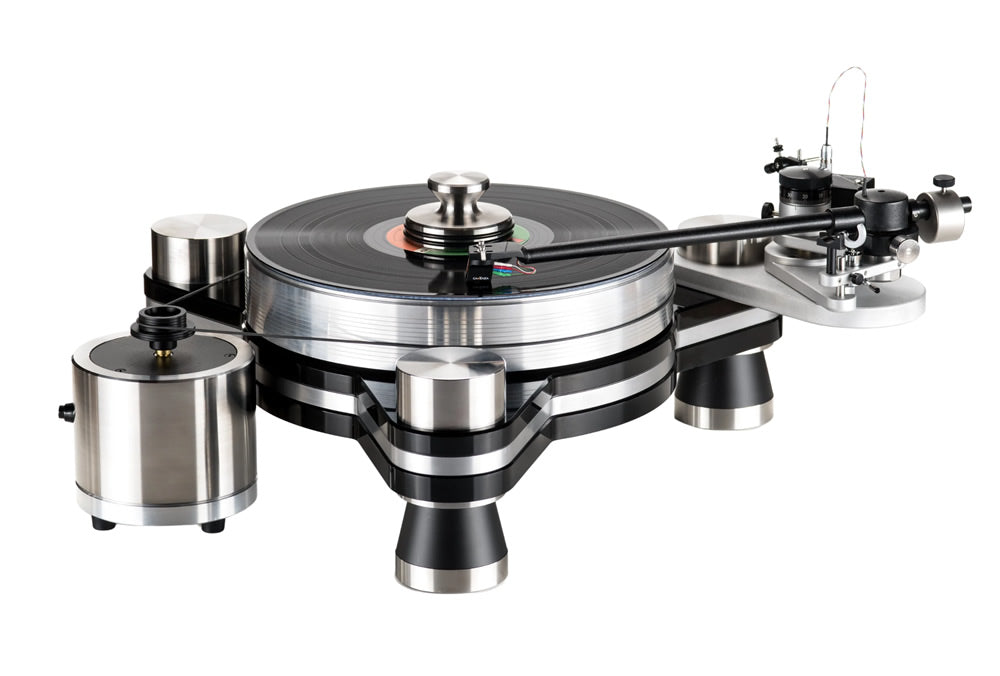

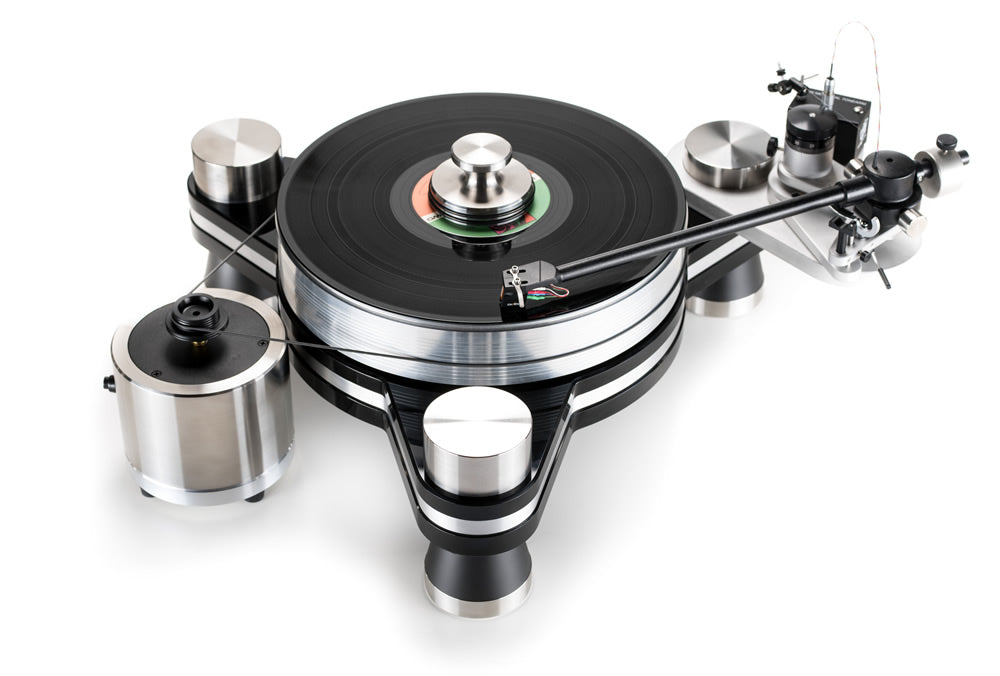

The VPI Avenger Table is the base model of our sand-box type high-end design with 3D arm and belt drive assembly.

Details and Specs

View full details

Contact us for information on this product

Features

The Avenger chassis is three layers of bonded acrylic/aluminum/acrylic with damping material between layers.

3 stainless steel corner posts for both isolation and tonearm mounting and for mechanical grounding (up to 3 will fit).

The 300 RPM, 24 pole, AC synchronous motor is capable of high torque and quiet operation. The motor is installed in a separate aluminum and steel machined assembly.

The Inverted bearing features a hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing and sits on a PEEK thrust disc. The belt side load is placed at the center of the spinning bearing for zero teeter-totter effects.

The 20 pound 6061 aluminum platter has an accuracy of +/- .001” in a 39” circumference.

The motor pulley has an accuracy of +/- .0005” when leaving factory.

JMW 12-3D with VPI pure copper wire.

Technical Specifications

Wow and flutter: .03%
Speed Accuracy: .04%
Rumble: 82db Down
Overall Dimensions: 27" x 23" x 10"
Footprint: 23" x 20"
Total Weight: 68-Lbs
