AT-ART9XI

AT-ART9XI

Regular price $1,500.00
Regular price Sale price $1,500.00
Sale Sold out

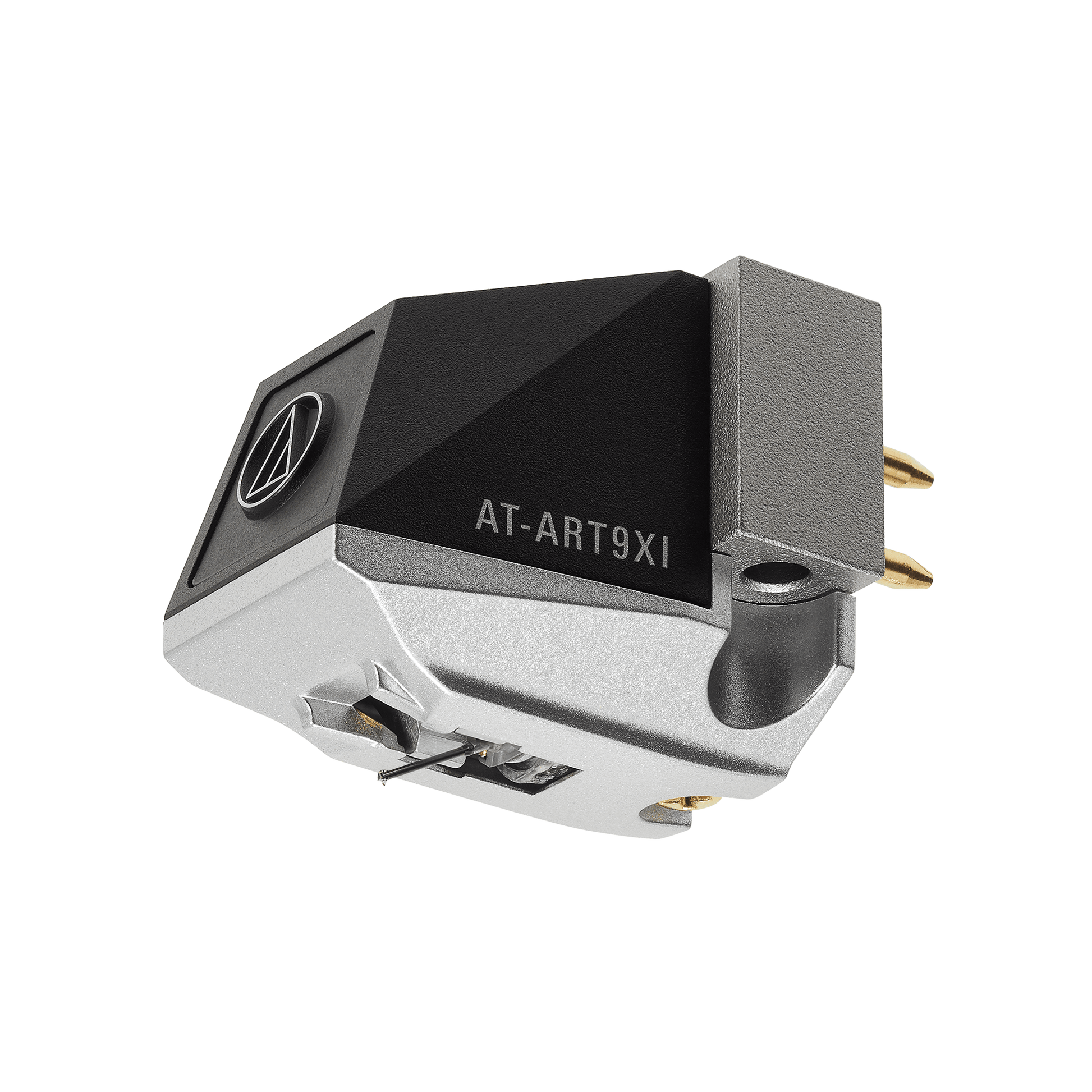

Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.

The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback.

Excellence






The AT-ART9XI has been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet our highest standards of high-fidelity performance.

View full details

Collapsible content

Features

Audio-Technica’s flagship magnetic core moving coil cartridge

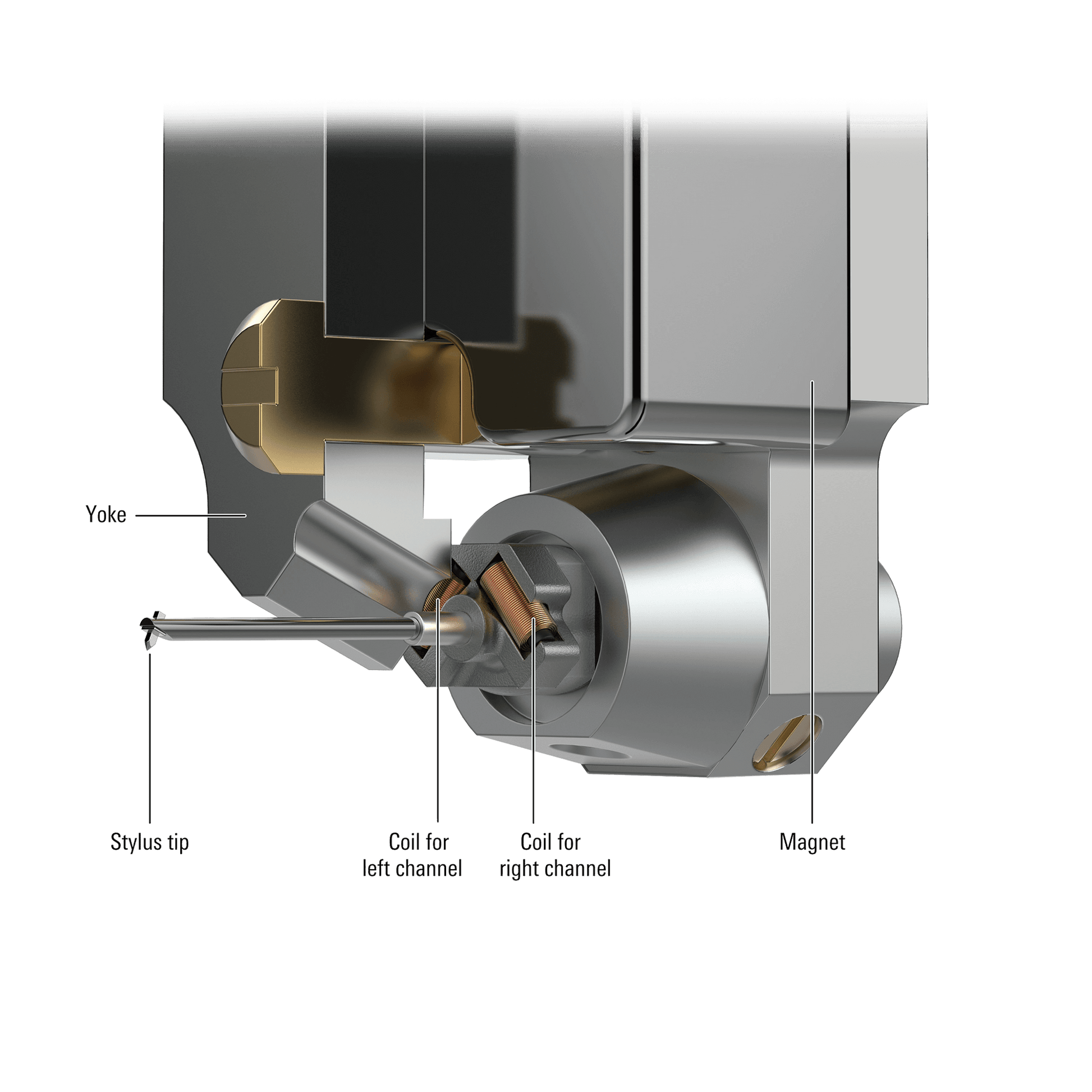

Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

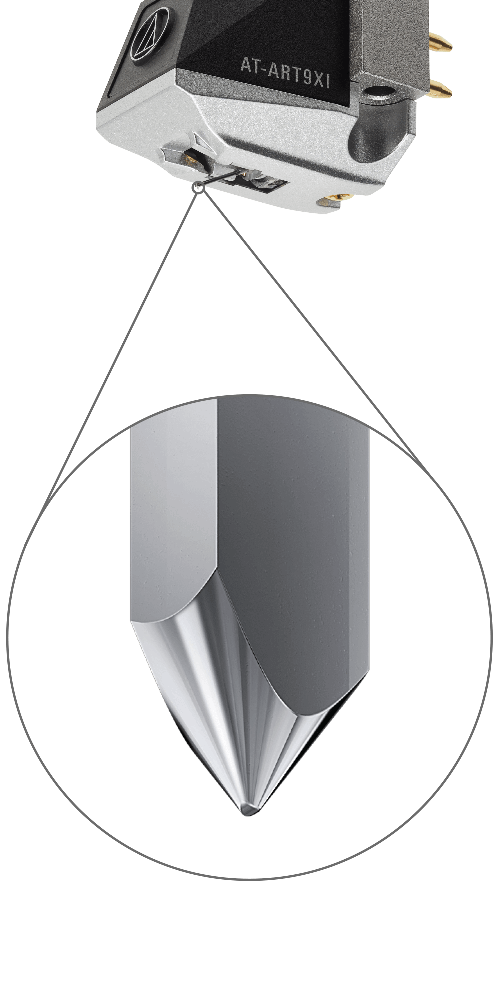

Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

Neodymium magnet and permendur yoke significantly increase magnetic energy

Specially designed magnetic circuit provides an output voltage of mV (1 kHz, 5 cm/sec)

PCOCC coils ensure high-fidelity transmission

Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm


Please Note: AT-ART9XI’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Specifications

Frequency Response 20-50,000 Hz

Channel Separation 30 (dB at 1 kHz)

Vertical Tracking Angle 20°

Vertical Tracking Force 1.6-2.0 g (1.8 g standard)

Stylus Construction Nude

Recommended Load Impedance Min. 100 ohms (when head amplifier connected)

Coil Impedance 12 ohms (1 kHz)

DC Resistance 12 ohms

Coil Inductance 25 µH (1 kHz)

Output Voltage 0.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance 0.5 dB (1 kHz)

Stylus Shape Special line contact

Cantilever 0.28 mm diameter solid boron

Static Compliance 25 x 10-6 cm/dyne

Dynamic Compliance 15 x 10-6 cm/dyne (100 Hz)

Mounting Half-inch

Cartridge Weight 8.5 g (0.30 oz)

Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D

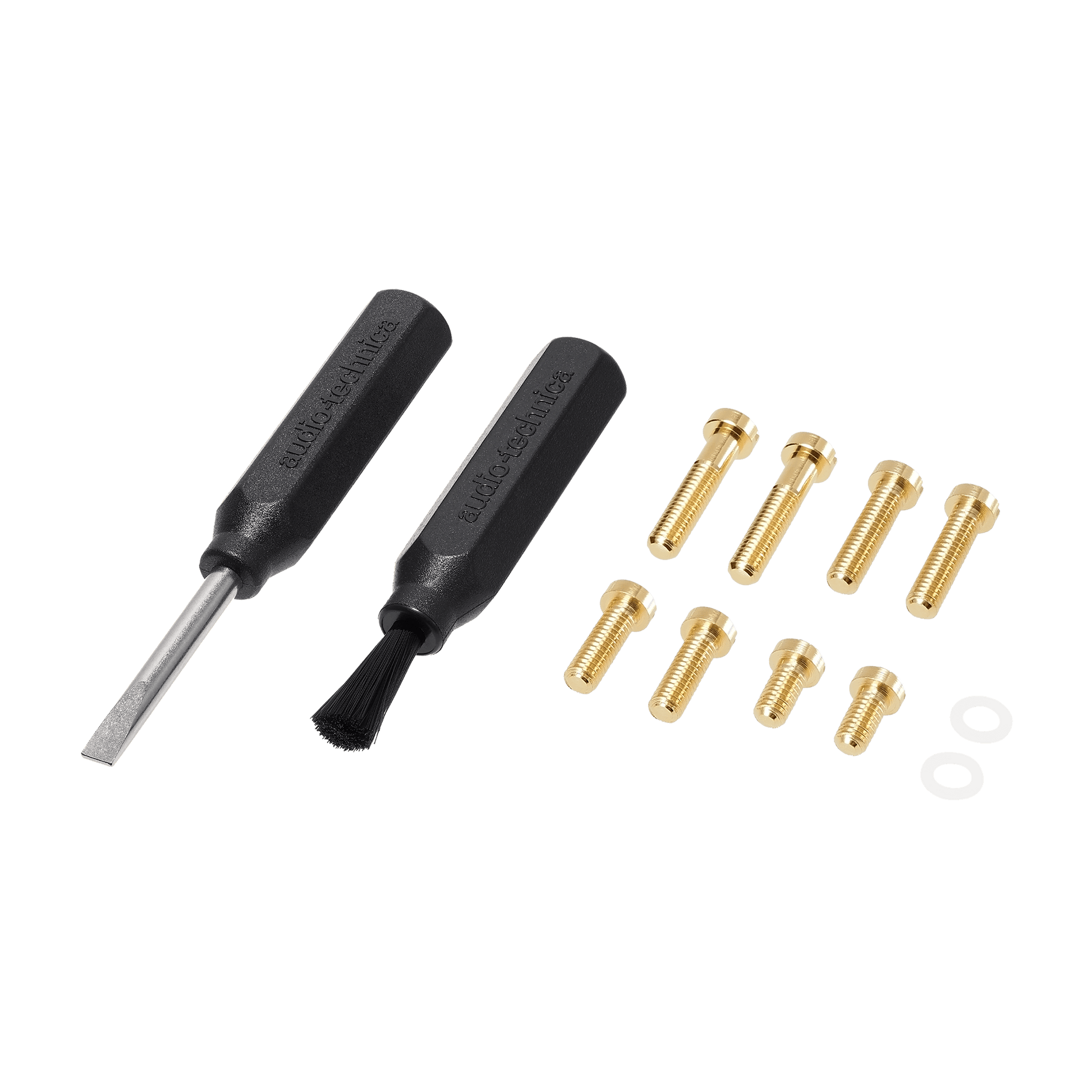

Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 10.0 mm x 2, 12.0 mm x 2); protector; brush

Threaded Hole M2.6 x 2

Notes Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
