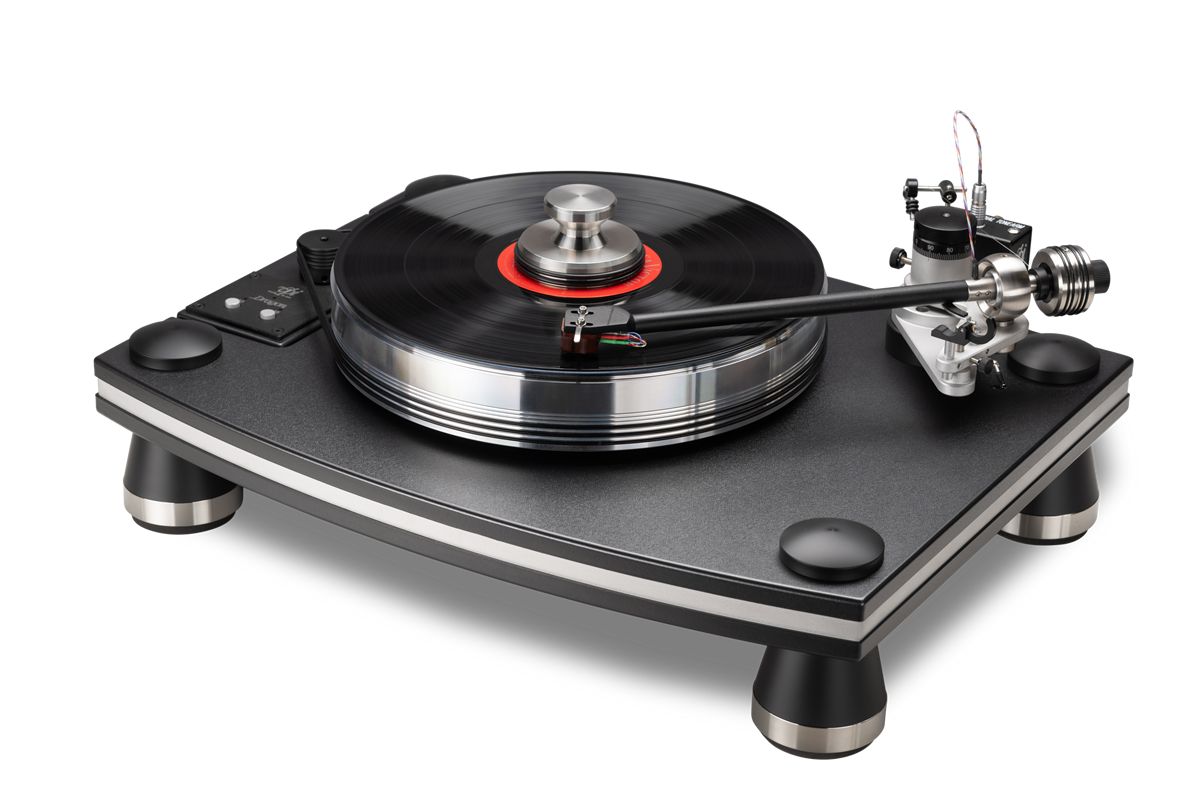

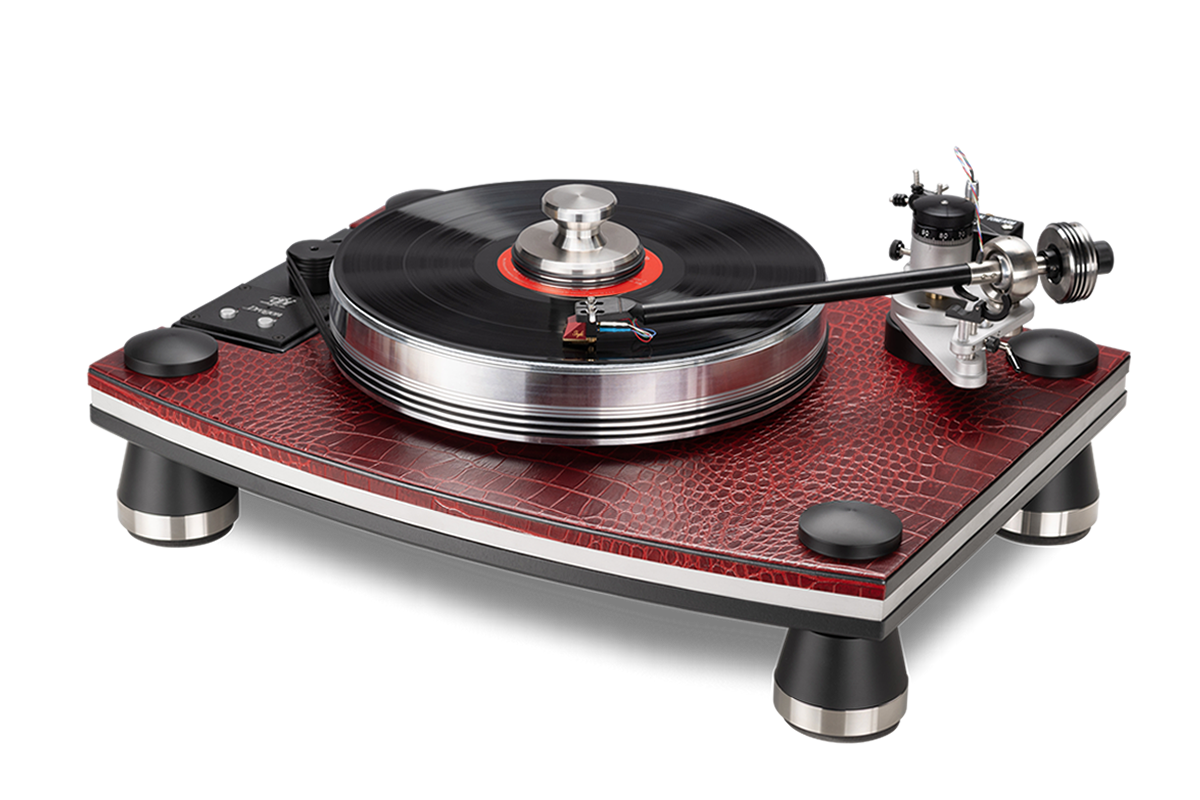

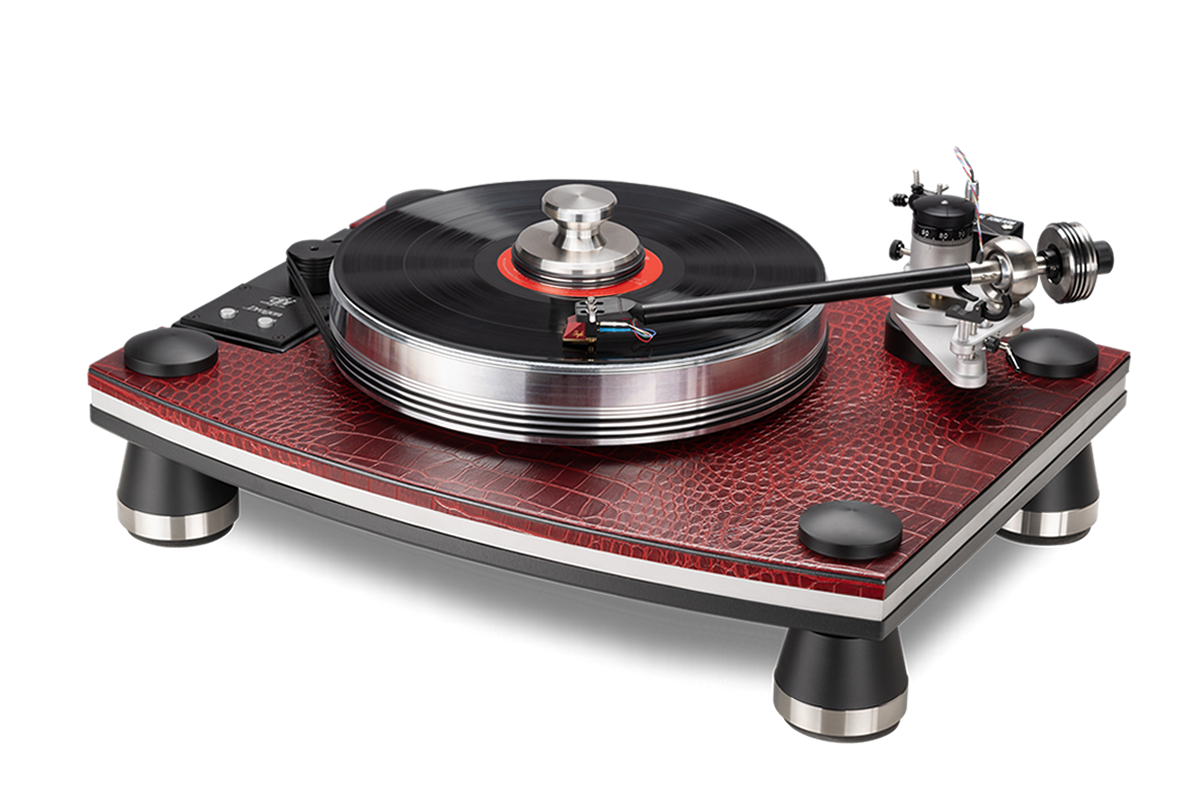

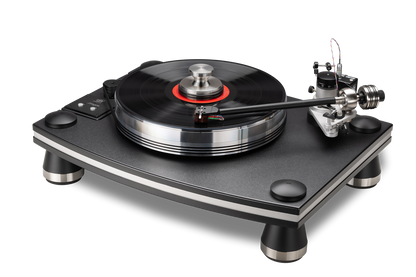

VPI Dragon

The Avenger chassis is three layers of bonded acrylic/aluminum/acrylic with damping material between layers.

3 stainless steel corner posts for both isolation and tonearm mounting and for mechanical grounding (up to 3 will fit).

The 300 RPM, 24 pole, AC synchronous motor is capable of high torque and quiet operation. The motor is installed in a separate aluminum and steel machined assembly.

The Inverted bearing features a hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing and sits on a PEEK thrust disc. The belt side load is placed at the center of the spinning bearing for zero teeter-totter effects.

The 20 pound 6061 aluminum platter has an accuracy of +/- .001” in a 39” circumference.

The motor pulley has an accuracy of +/- .0005” when leaving factory.

JMW 12-3D with VPI pure copper wire.
